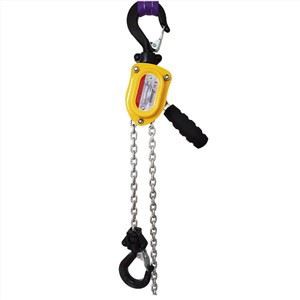

Lever Block Chain Hoist
Lever block chain hoist Chain blocks, also known as chain hoists, are a great investment for doing heavy duty lifting on the worksite. These products are used to lift and lower heavy loads by making use of a chain. Using a winching system, they come in both manual and electric varieties. These...
Description
Name: Lever block chain hoist
Details:
Chain blocks, also known as chain hoists, are a great investment for doing heavy duty lifting on the worksite. These products are used to lift and lower heavy loads by making use of a chain.
Using a winching system, they come in both manual and electric varieties. These mechanisms contain a chain used for lifting as well as a hand chain and grabbing hook.
While chain blocks do lifting vertically, you can also employ multi-directional lever blocks (aka lever hoists) which can work for pulling as well as lifting.
| Capacity(T) | 1.5 | |
| Standard Lift(M) | 1.5 | |
| Test Load(KN) | 1.88 | |
| Effort Required(N) | 240 | |
| Load Chain Dia.(MM) | 8 | |
| Load Chain Fall Qty. | 1 | |
|
Dimension |
A | 176 |
| B | 102 | |
| C | 155 | |
| D | 36 | |
| L | 415 | |
| H | 380 | |
| Net weight(KG) | 11.5 | |
| Packing size(L*W*H)(CM) | 52X14X18 | |
A Lever block chain hoist is a piece of high-quality equipment used to lift and lower heavy loads without the aid of machinery. Lever Hoists have the ability to lift items in most positions, including horizontally. Different from the Chain Block or Hoist, which can only lift items vertically, the Lever Hoist's ability to lift items horizontally is a great benefit.
A Level block chain Hoist is usually fitted with a heavy-duty safety cap to hold your items comfortably and a top swivel connection which will allow easy lifting from all angles. The hand wheel can then be turned to release or retract as much chain length as required. The ratchet lever attached to the side of the lever hoist allows the chain to be free-willed when placed in the neutral position. When placed in the up position, it tightens the chain allowing the load to be lifted with the tension.
Finally, to lift the load, crank the heavy-duty lever until your load has reached a suitable height. To lower the load, the ratchet lever must be switched to the downward position and the heavy-duty lever cranked to lower the chain.
1: Can you arrange to deliver the goods for us?
Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term,the buyer also can choose Air-transport or Ocean shipping for your requirement. When your orders reach your local nearest Sea port or River port, the logistics company will infrom you.
2: Can you guarantee your products?
Yes, we guarantee your 100% satisfaction on all our products.
Please feel free to feed back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.
