Brake Hand Winch
The Brake hand Winch is a high quality multi-purpose winch used for a wide variety of lifting and hoisting applications.
Description
Instruction

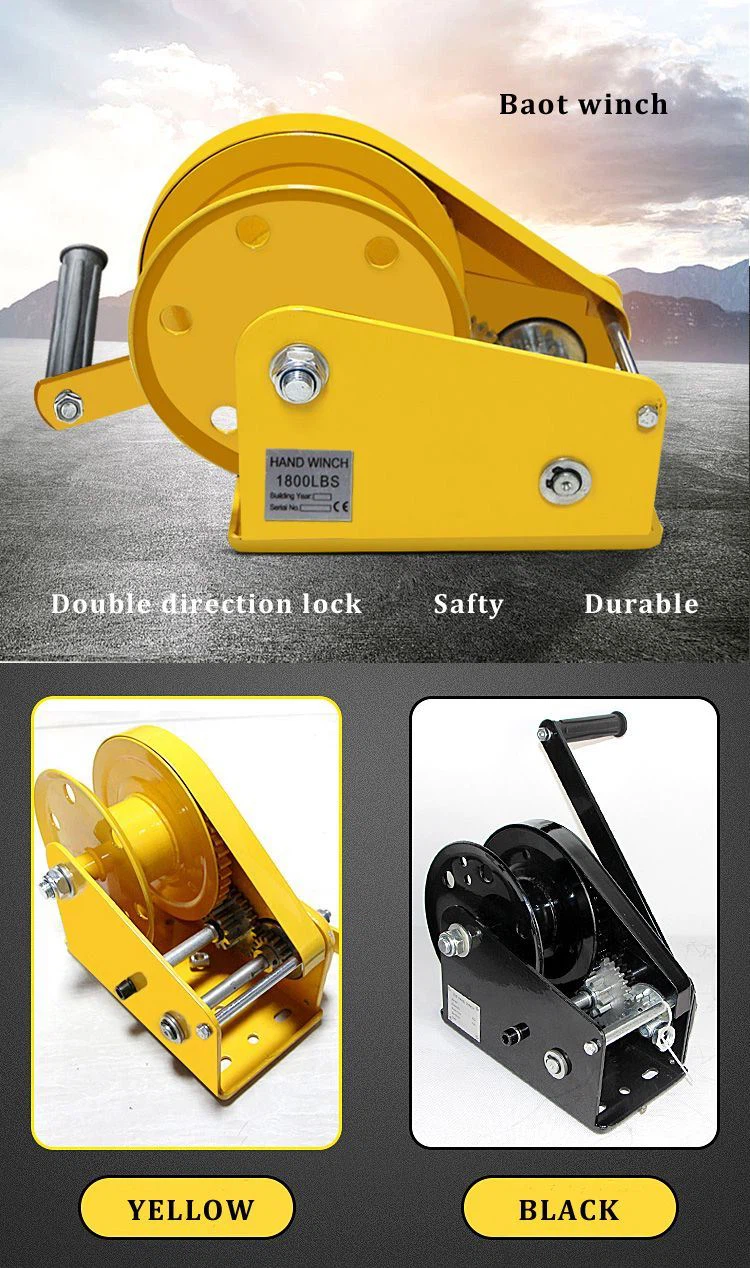

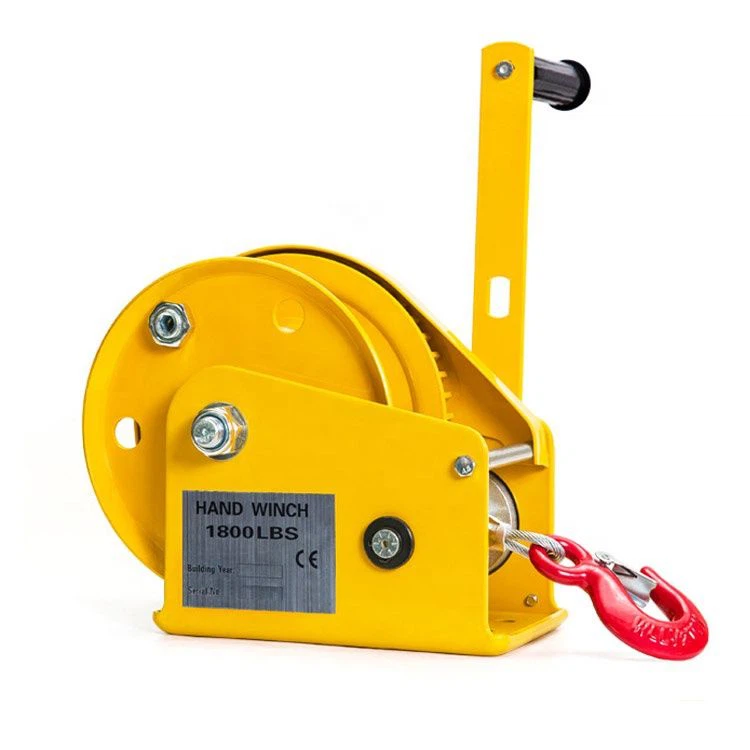

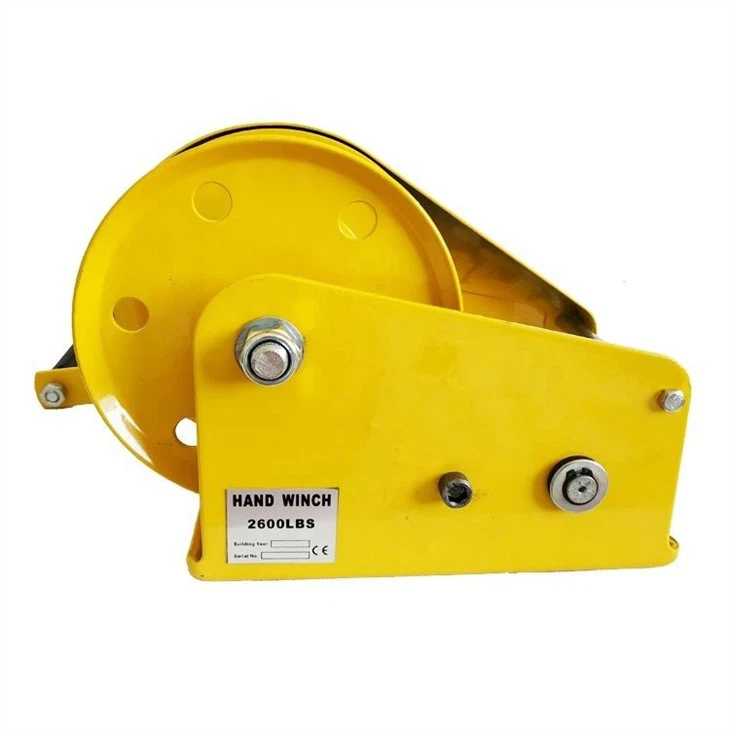

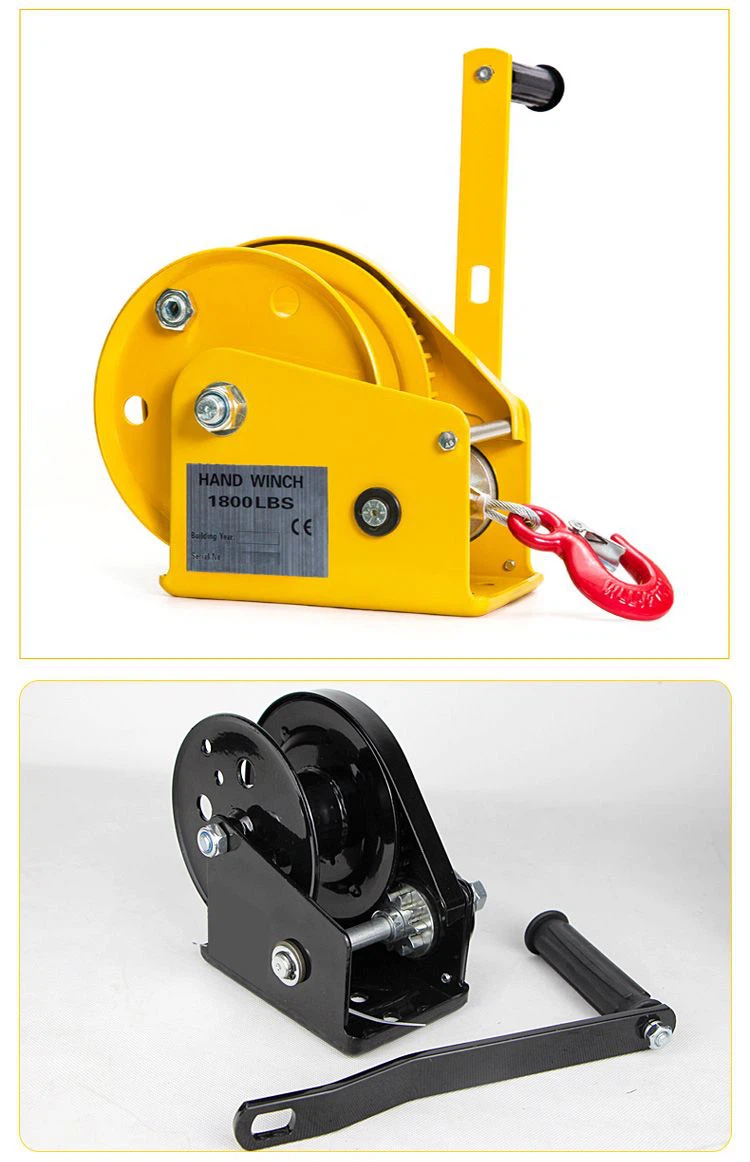

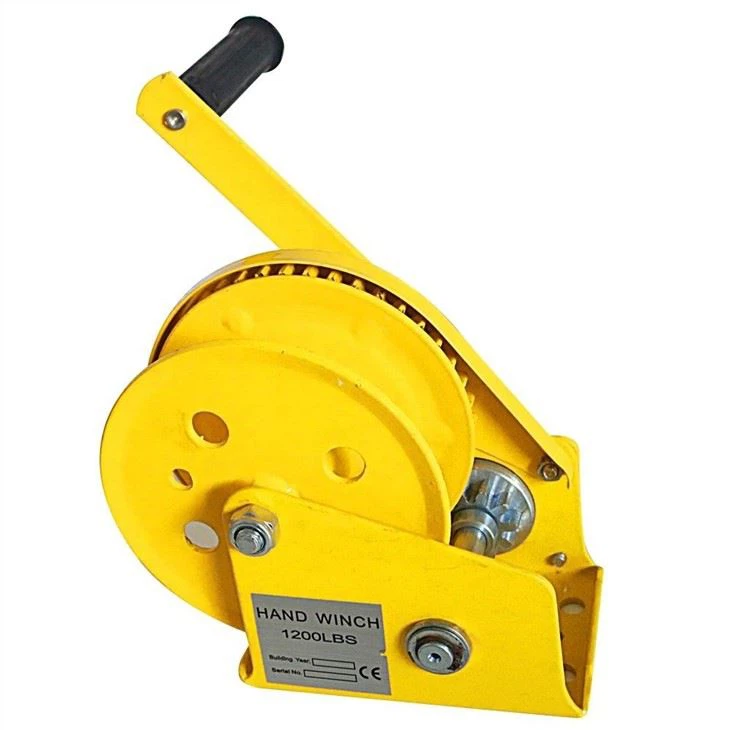

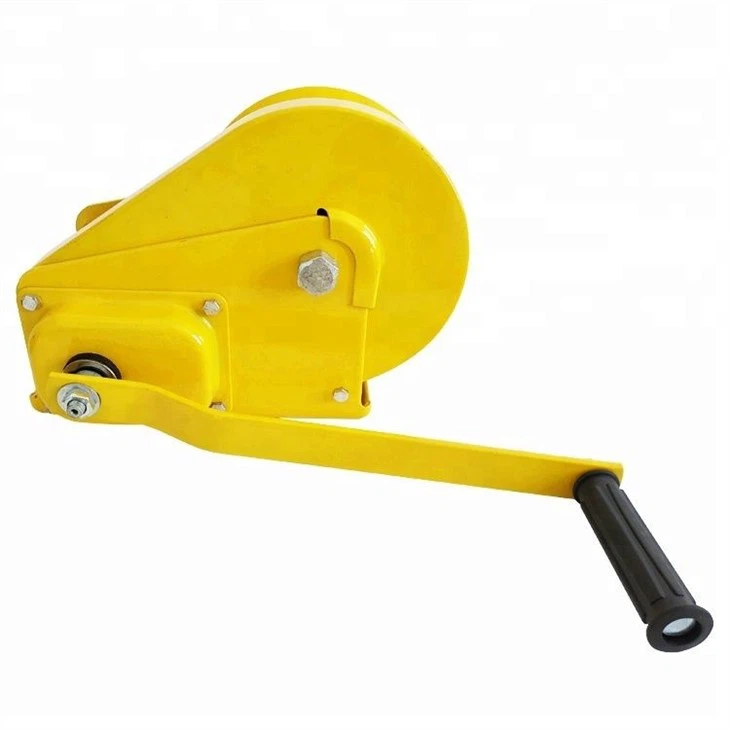

The Brake hand Winch is a high quality multi-purpose winch used for a wide variety of lifting and hoisting applications. The automatic brake ensures the load remains suspended when the crank is released and avoids unchecked descent of the load; there is no freewheeling making the hand winch extremely safe to operate. All the mechanical components are enclosed for protection against dust, dirt and rain contamination. This equipment has a lifting capacity ranging from 800lbs to 2600lbs. The brake hand winch is compact and lightweight yet rugged and durable.
Model | 1T | 1.5T | 2T | 3T | 5T | 10T | |
Lifting height(3) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | |
Effort Required(N) | 250 | 265 | 335 | 372 | 360 | 380 | |
Load Chain Fall Qty. | 1 | 1 | 1 | 2 | 2 | 4 | |
Load Chain Dia.(MM) | 6 | 8 | 8 | 8 | 9 | 10 | |

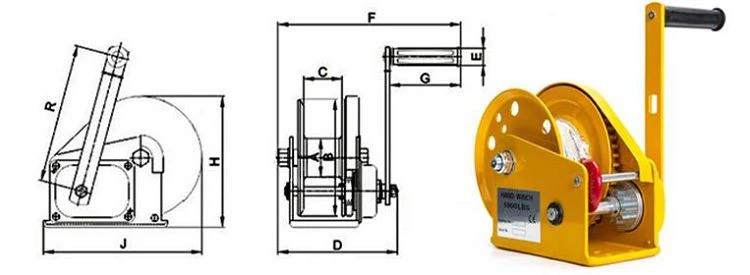

Dimensions(MM) | A | 149 | 176 | 176 | 231 | 249 | 463 |
B | 153 | 173 | 173 | 185 | 185 | 185 | |
C | 29 | 35 | 35 | 39 | 49 | 54 | |
H | 352 | 385 | 385 | 445 | 615 | 765 | |
Weight(KG) | 15 | 17 | 20 | 34 | 44 | 80 | |
The weight added 1M of lifting height(kg) |
1.6 |
2.0 |
2.3 |
3.0 |
4.8 |
9.8 | |
