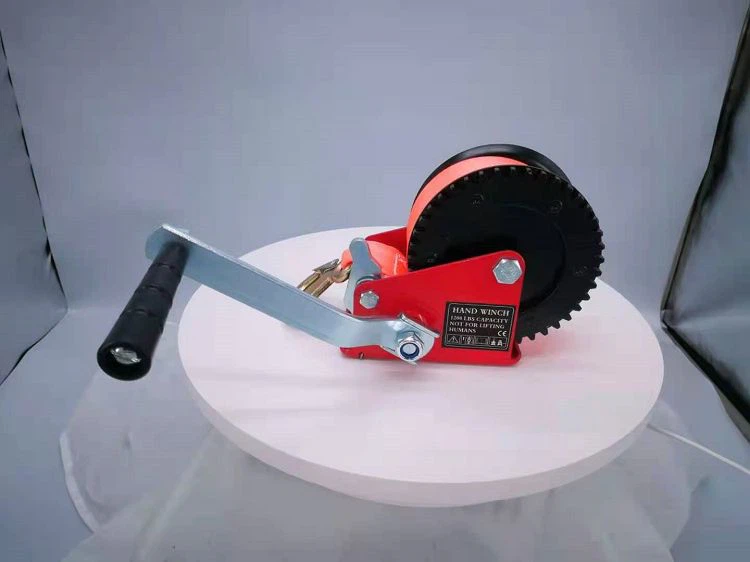

Manual Trailer Winch With Strap
Manual Trailer Winch with strap is a lifting tool suitable for many places. Manual winches can be used for self-rescue vehicles in harsh environments such as snow, swamps, deserts, beaches, and muddy mountain roads.
Description
Instruction
Manual Trailer Winch with strap is a lifting tool suitable for many places. Manual winches can be used for self-rescue vehicles in harsh environments such as snow, swamps, deserts, beaches, and muddy mountain roads. They may also perform operations such as clearing obstacles, dragging objects, and manual winch installation facilities under other conditions. Indispensable safety devices for hydrology, environmental protection, forestry, transportation, public security, frontier defense manual winches, fire fighting and other field sports.
When a variety of rescue work is required, manual winches are another option besides vehicle winches. Its biggest advantage is that it can be portable and can be connected from any direction of the car. Lightweight and strong, electroplated and pressed steel structure, the steel cable is driven by two built-in forks to pull the pulley to advance the unit. These prongs pull the steel cable when the winch is in forward mode and are also an automatic braking system. The fork will automatically lock when the grip is increased. The manual winch can also be used for lifting (the lifting force is about 65% of the drag force).
Parameter
product code | power | wire rope length | webbing length | Grar ratio |
BT-500A | 500lbs | 3.0mm*8m(can be customized) | 50mm*6m(can be customized) | 3.1:1 |
BT-600A | 600lbs | 4.0mm*8m(can be customized) | 50mm*6m(can be customized) | 3.2:1 |
BT-800A | 800lbs | 4.0mm*8m(can be customized) | 50mm*6m(can be customized) | 3.2:1 |
BT-1000A | 1000lbs | 4.5mm*8m(can be customized) | 50mm*8m(can be customized) | 4.1:1 |
BT-1200A | 1200lbs | 4.5mm*8m(can be customized) | 50mm*6m(can be customized) | 4.1:1 |
BT-1600A | 1600lbs | 4.5mm*8m(can be customized) | 50mm*10m(can be customized) | 4.1:1 |
BT-1800A | 1800lbs | 5.0mm*8m(can be customized) | 50mm*10m(can be customized) | 4.1:1 |
BT-2000A | 2000lbs | 5.0mm*8m(can be customized) | 50mm*10m(can be customized) | 4.1:1 |
BT-2500A | 2500lbs | 5mm*8m(can be customized) | 50mm*10m(can be customized) | 4.1:1 |
BT-3000A | 3000lbs | 5.5mm*8m(can be customized) | 50mm*10m(can be customized) | 4.1:1 |
Function and details
