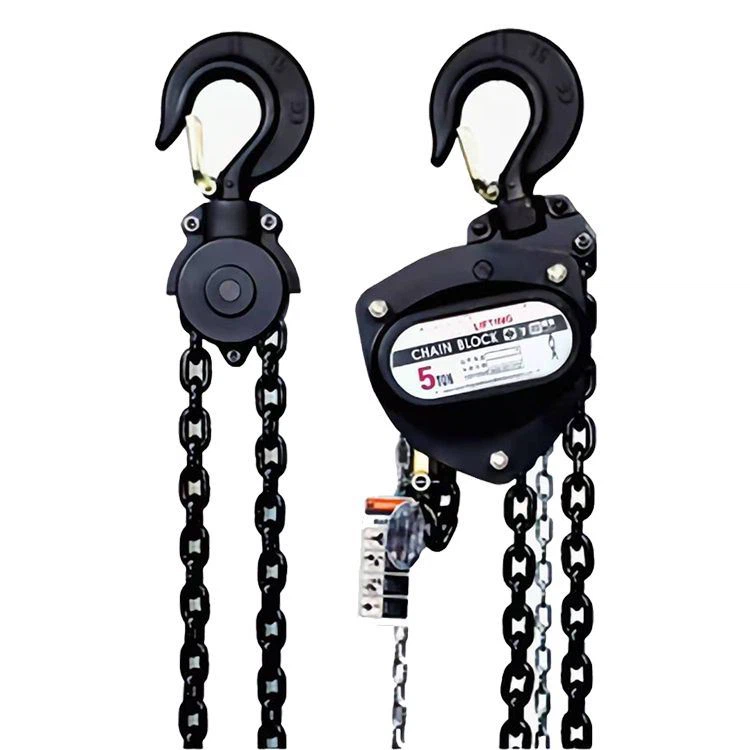

5tonne Chain Block 3m Drop
The 5tonne Chain Block 3m Drop all parts are made of high-quality materials, and additional plating and spraying processes are used to increase the corrosion resistance. The sturdy alloy steel shell can effectively protect the internal mechanism from damage even under harsh conditions.
Description
Instruction
Capacity: 5 Ton
Lifting height: 9.8ft.
Material: Steel
The 5tonne Chain Block 3m Drop all parts are made of high-quality materials, and additional plating and spraying processes are used to increase the corrosion resistance. The sturdy alloy steel shell can effectively protect the internal mechanism from damage even under harsh conditions. Both the chain guide mechanism and the gear transmission are equipped with housing protection devices, which can protect these key components and adapt to different operating environments.
The lifting sprocket is made of hardened materials and has undergone finishing treatment to ensure the smooth and accurate movement of the chain. The extremely low headroom size can maximize the use of space and increase the effective lifting distance.
The alloy steel lifting chain, perfectly matched with the hoist body can ensure smooth and accurate operation. The upper and lower hooks are made of anti-aging, high-toughness alloy steel, which will deform first in case of overload and will not break suddenly, ensuring the safety of users.
Parameter
Capacity | 3T |

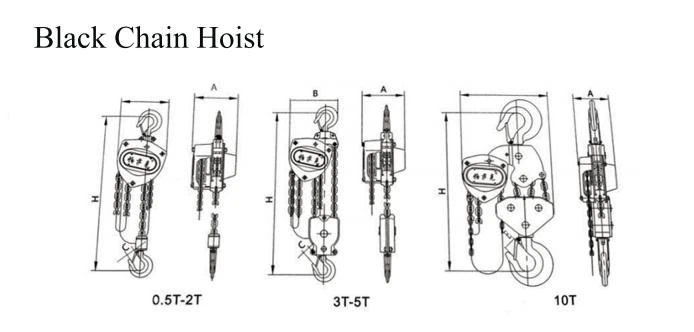

Dimension | A | 176 |
Standard lift(M) | 3 | B | 230 | |
Running Test(T) | 4.5 | C | 46 | |
Effort required to lift(KN) | 363 | H | 565 | |
NO.of fall of load chain | 1 | Gross weight(KG) | 23 | |
Load chain diameter(MM) | 10 | Packing(LXWXH)(CM) | 34X26X20 | |
Function and details
